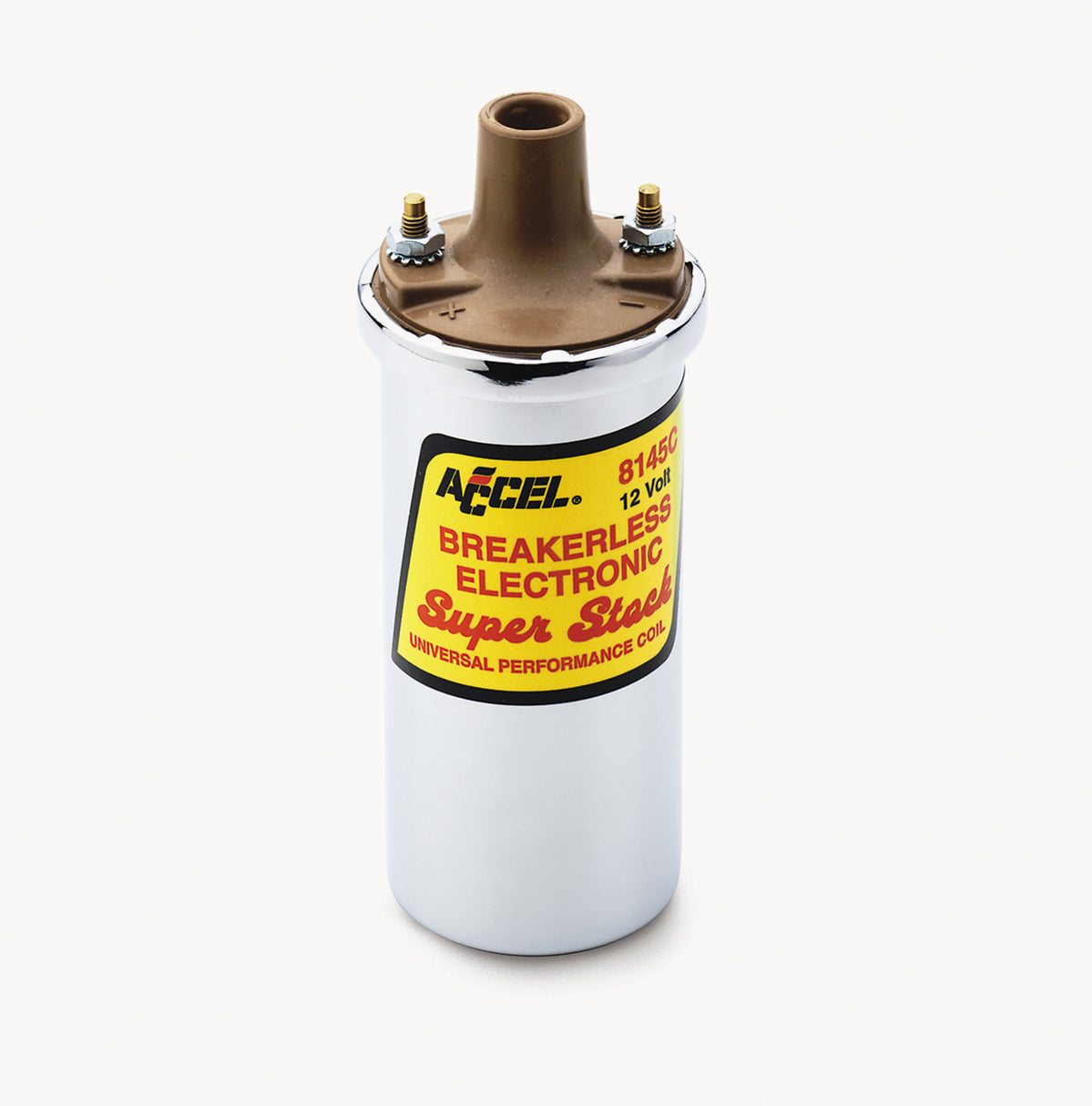

This chrome ACCEL Super Coil is effective up to 6500 RPM, maximum voltage 45,000 volts
Excellent high performance coil for vehicles that have been converted from points to a breakerless electronic distributor or electronic ignition system, where a canister type oil filled can coil is preferred. Designed with optimized low resistance, high turns ratio windings to work specifically with ACCEL 41, 51, 52, 61 & 71000 Series breakerless electronic replacement distributors. Engineered for higher energy output resulting in quicker starting, improved throttle response and more high RPM power. Special crimped and soldered internal connections ensure positive contacts. High performance tan Alkyd tower provides ""flashover"" protection to primary terminals. Available in ""ACCEL Yellow"" or Chrome Plated can.
- Engineered for higher energy output
- Improved throttle responce
- More high RPM power
Specification:
| Application |
Universal |
| Brand |
ACCEL |
| Category |
Ignition Coils |
| Color |
Chrome |
| Emission Code |
3 |
| Finish |
Chrome |
| Material |
Steel |
| Maximum Voltage |
45,000 Volts |
| Primary Resistance |
0.7 Ohms |
| Product Type |
Ignition Coils |
| Quantity |
1 |
| Quantity Per Pkg. |
1 |
| Secondary Resistance |
10.8 k Ohms |
| Sub Category |
Ignition Coil |
| Turns Ratio |
113:1 |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day Warranty |
| Weight |
1.4500 |
