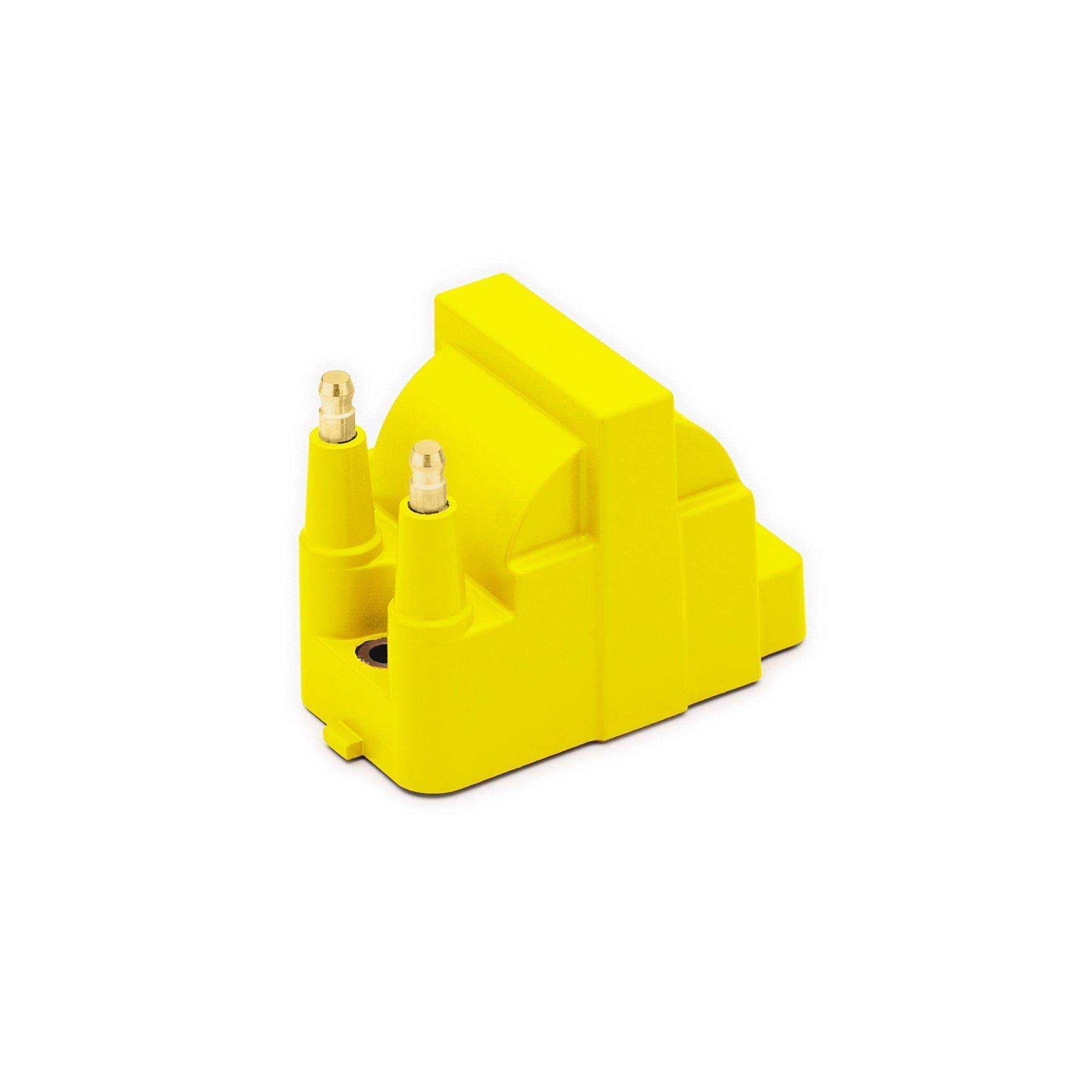

This ACCEL AC/Delco style super DIS coil for GM 1986-2003 has a maximum voltage of 45,000 volts.
Re-engineered to be the only true performance AC/Delco style DIS coil. ""Raised Dome"" construction, section bobbin technology, highly specialized silicone magnetic steel core, optimized windings, resistance, and turns ratio result in higher energy and voltage outputs, and longer dwell. Compatible with OE computer controlled ignition systems as well as Crane or MSD capacitive discharge DIS ignition systems. Brass contact increases energy transfer and resists corrosion better than aluminum. High dielectric strength ""ACCEL Yellow"" over molded housing. Packaged as single unit: 4 cyls require 2 coils, 6 cyls require 3 coils and 8 cyls require 4 coils.
- 10-15% More Energy
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- Standard Motor Products SMP Dr-39
- MSD 8224
Specification:
| Application |
GM |
| Brand |
ACCEL |
| Category |
Ignition Coils |
| Color |
Yellow |
| Emission Code |
3 |
| Maximum Voltage |
45,000 Volts |
| part type |
Direct Ignition Coil |
| Peak Increase in Current vs. OE |
12% |
| Peak Increase in Dwell vs. OE |
21% |
| Peak Increase in Voltage vs. OE |
10% |
| Primary Resistance |
0.5 Ohms |
| Product Type |
Ignition Coils |
| Quantity |
1 |
| Quantity Per Pkg. |
1 |
| Secondary Resistance |
8.0 k Ohms |
| Sub Category |
Ignition Coil |
| Turns Ratio |
75:1 |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day Warranty |
| Weight |
1.0000 |
