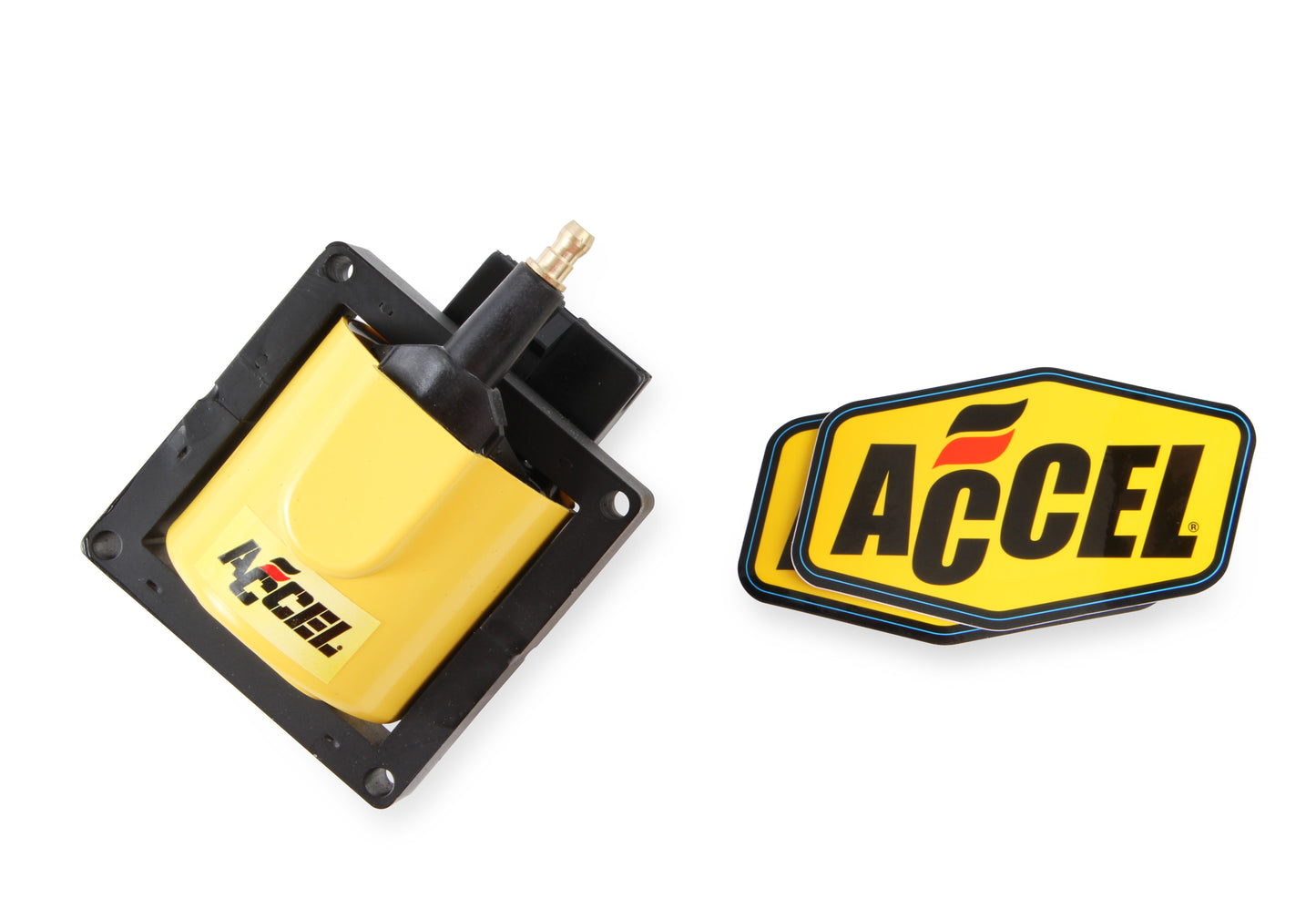

This ACCEL Ford EEC-IV 1984-98 ignition coil has a maximum voltage of 48,000 volts.
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, and crisper throttle response. Compatible with late model Ford EEC-IV computer controlled ignition system equipped with a TFI distributor. Direct OEM replacement. Can also be used with an ACCEL, Mallory, Crane, Holley or MSD capacitive discharge ignition system. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy efficiency and resists corrosion better than aluminum. High dielectric strength ACCEL Yellow over-molded housing.
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Standard Motor Products SMP Fd-478
- MSD 5527
Specification:
| Application |
Ford |
| Brand |
ACCEL |
| Category |
Ignition Coils |
| Color |
Yellow |
| Emission Code |
2 |
| Maximum Voltage |
48,000 volts |
| Peak Increase in Energy vs. OE |
37% |
| Peak Increase in Voltage vs. OE |
23% |
| Primary Resistance |
0.2 Ohms |
| Product Type |
Ignition Coils |
| Quantity |
1 |
| Quantity Per Pkg. |
1 |
| Secondary Resistance |
8.8 k Ohms |
| Sub Category |
Ignition Coil |
| Turns Ratio |
132:1 |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day Warranty |
| Weight |
2.0000 |
